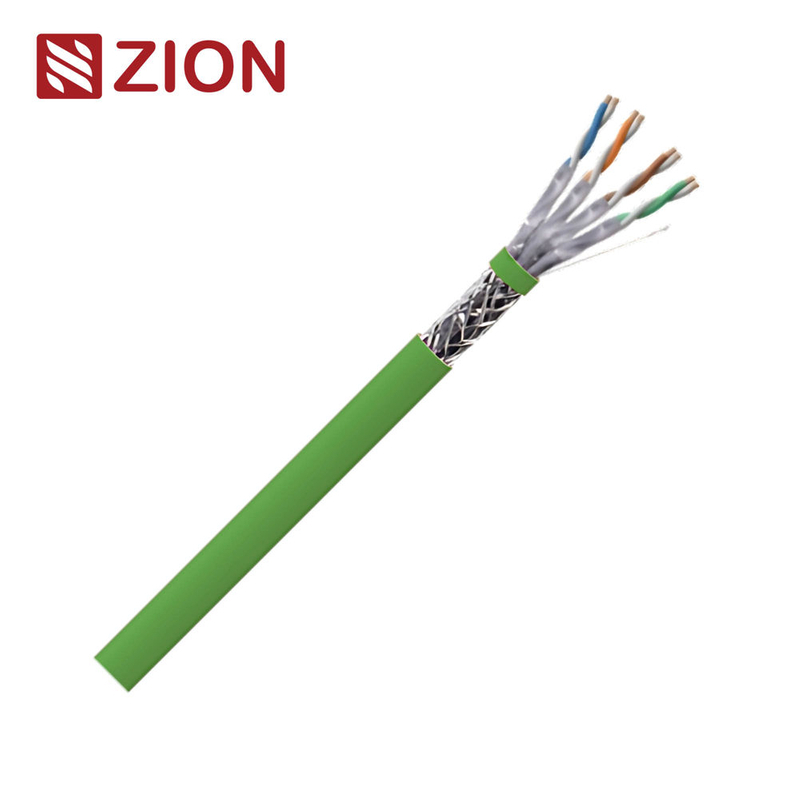

S/FTP CAT 6A LSZH Ethernet Cable with 750 MHz Bandwidth, High-Power PoE Support, and Double-Shielded Construction

Cable Type

S/FTP Cat 6A

Screened/Foiled Twisted Pair

Conductor

0.58 ± 0.005 mm Solid CCA

Approximately 23 AWG

Insulation

1.40 ± 0.05 mm Foam PE

High-quality dielectric

Pair Shielding

AL/PET Foil (100% Coverage)

Eliminates Pair-to-Pair Crosstalk

Overall Shield

65U Aluminum Foil + Braiding

Braiding: 5×16×0.12mm Al-Mg, 40% Coverage

Drain Wire

0.5 mm TCCA

Tinned Copper Clad Aluminum

Outer Jacket

7.5 ± 0.2 mm LSZH

Low Smoke Zero Halogen

Jacket Color

Customization is available

—

Max Frequency

750 MHz

Superior to 500 MHz standard

DC Resistance

< 10.79 Ω / 100m

at 20°C

Characteristic Impedance

100 ± 15 Ω

1 – 100 MHz

100 ± 25 Ω

100 – 750 MHz

NVP (Nominal Velocity)

0.74

High speed of signal propagation

Delay Skew

≤ 25 ns / 100m

Ensures data synchronization

Mutual Capacitance

5.6 nF / 100m

—

Reference Standards

ISO/IEC 11801-1, ANSI/TIA-568.2-D, UL444, IEC60332-1

Primary Application

10GBASE-T Ethernet (10 Gigabit)

Supported Applications

1000BASE-T, 100BASE-T, VoIP, ISDN, Analog and Data video

PoE Support

POE Type 1, 2, 3, 4

Operating Temperature

−20 to 60 °C

Pulling Tension (Max)

≥ 13.5 MPa

Bend Radius (Min)

8 × OD of Jacket
