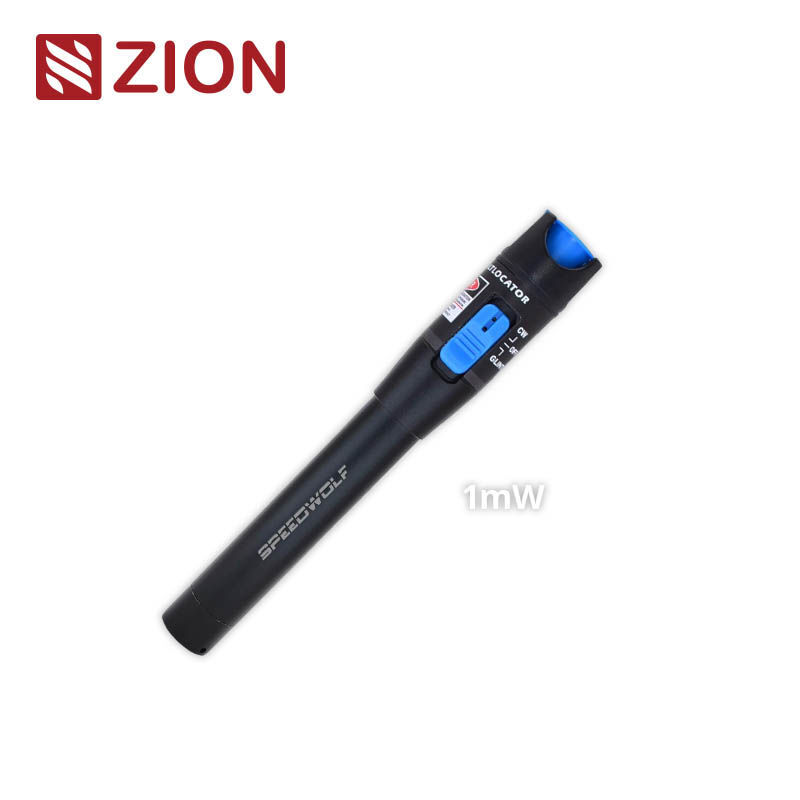

Low-Power 1mW Fiber Visual Fault Locator VFL for FTTH Fiber Fault Detection

बुनियादी जानकारी
उत्पत्ति के प्लेस: निंगबो चाइना
ब्रांड नाम: OEM
मॉडल संख्या: फाइबर ऑप्टिक टूल किट
न्यूनतम आदेश मात्रा: 10 बक्से
पैकेजिंग विवरण: 1pcs/बॉक्स
प्रसव के समय: 5-25 दिन
विस्तार जानकारी
प्रमुखता देना:

1mW Fiber Visual Fault Locator

,

Low-Power VFL

,

FTTH Fiber Fault Locator


उत्पाद विवरण

 Fiber Visual Fault Locator (VFL)

Low-Power Version

ZION Model Code: ZC-VFL-1

Product Overview

ZION Fiber Visual Fault Locators provide fast and visible identification of fiber breaks, bends, poor splices, and connector faults.
Featuring an imported laser diode and aluminum alloy housing, they ensure stability and durability in field environments.

  • Imported laser head with high thermal conductivity

  • Rugged aluminum alloy enclosure

  • Replaceable ceramic ferrule

  • Continuous and 2 Hz modulation modes

Technical Specifications

Parameter Specification
Output Power 1 mW
Test Distance 3–5 km
Wavelength 650 nm
Modulation 2 Hz
Connector Universal 2.5 mm
Laser Type LD
Battery 2 × AA
Working Temp. 0 °C ~ +60 °C
Storage Temp. –20 °C ~ +70 °C
Weight 85 g
Dimensions 175 × 26 × 26 mm
